Professional Manufacture Readymade Container Houses Prefabricated Architecture Tiny House Expandable Detachable Container Home

Professional Manufacture Readymade Container Houses Prefabricated Architecture Tiny House Expandable Detachable Container Home

$9,403.99 USD
$0.00 USD $9,403.99 USD
Sale Sold out
Shipping calculated at checkout.
Color

Discover the ultimate fusion of modern living and innovative design with our Professional Manufacture Readymade Container Houses. These prefabricated architecture tiny houses offer a unique solution for those seeking a stylish yet functional home.

Constructed with high-quality materials, each container home is designed for expandability and detachability, allowing you to customize your space to fit your lifestyle. Whether for a cozy weekend getaway or a permanent residence, these homes provide versatility like no other.

  • Modern Design: Sleek and contemporary, perfect for any setting.
  • High-Quality Doors: Features a broken bridge aluminum double door for superior insulation and aesthetics.
  • Breathable Structure: Engineered for optimal ventilation, ensuring comfort throughout the year.
  • Certification: CE and ISO9001 certified for peace of mind and quality assurance.
  • After-Sale Service: Enjoy online technical support to assist you whenever needed.

With no harmful chemicals and a focus on sustainable living, our Prefabricated Integrated Expandable Container homes are the perfect choice for eco-conscious individuals. Start your journey toward a new lifestyle today!

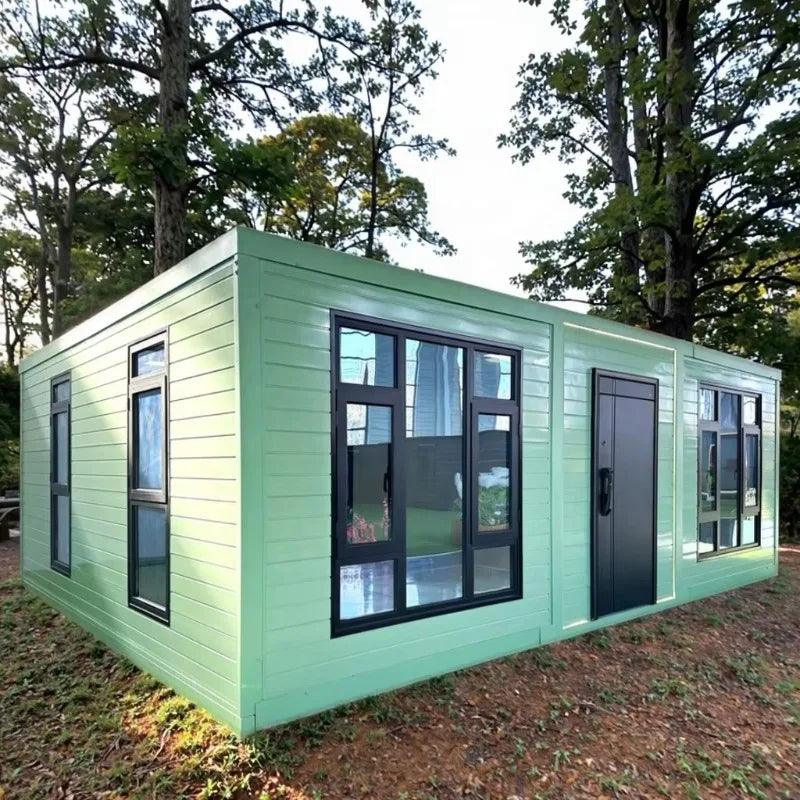

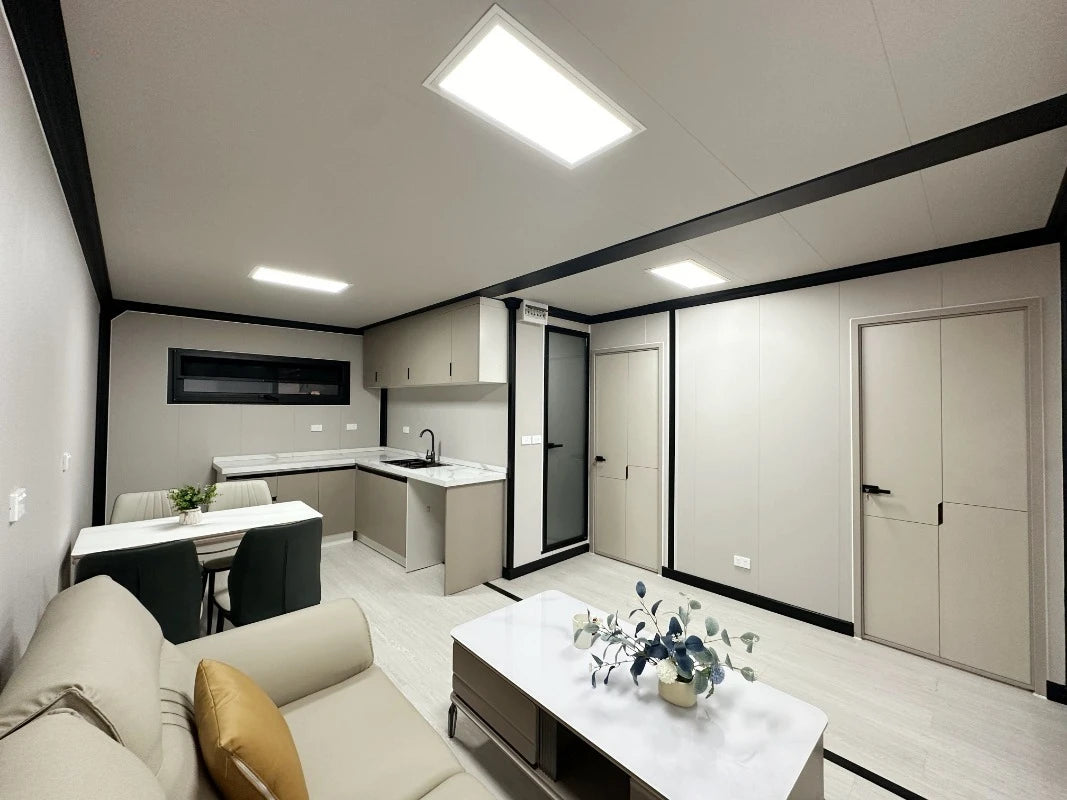

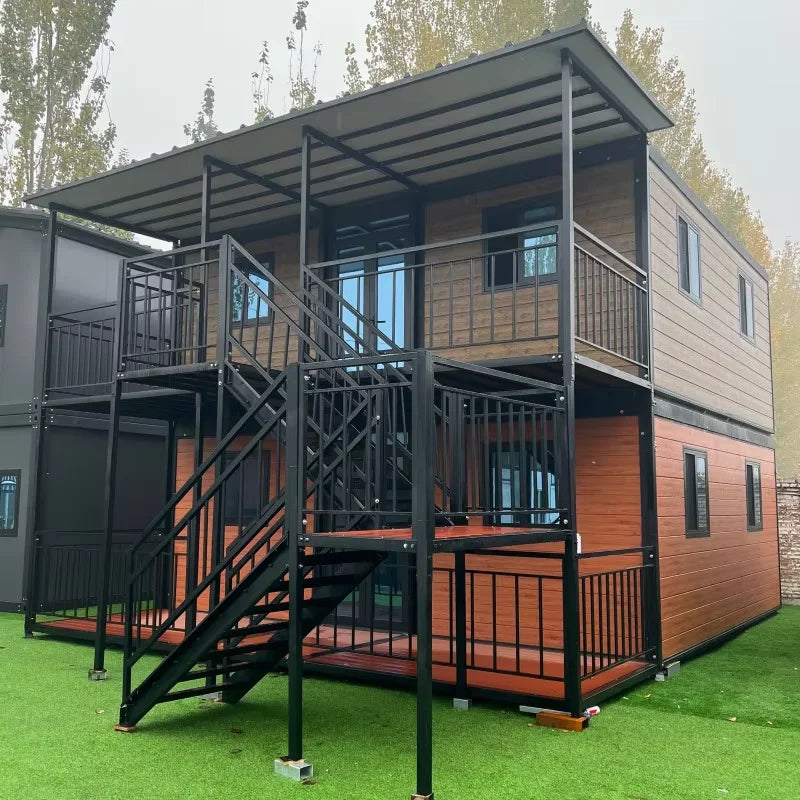

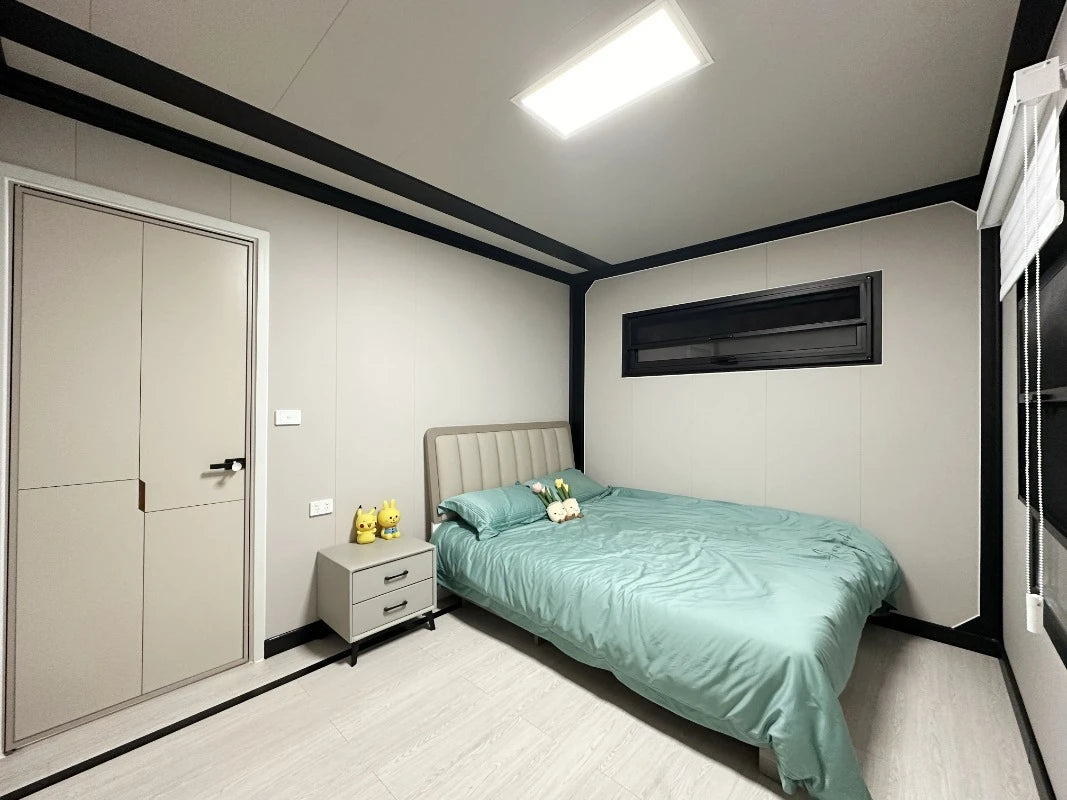

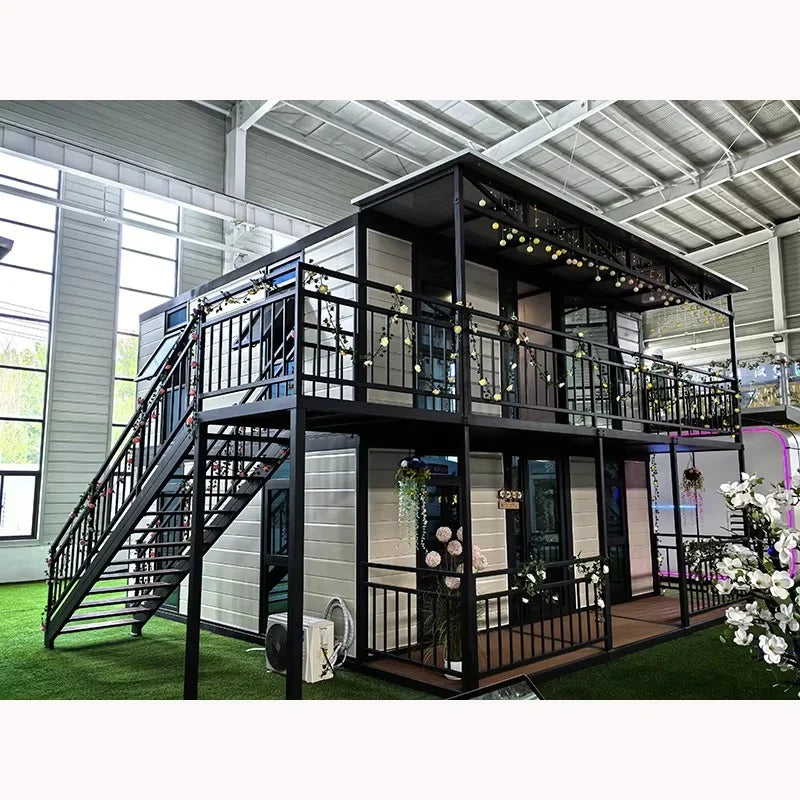

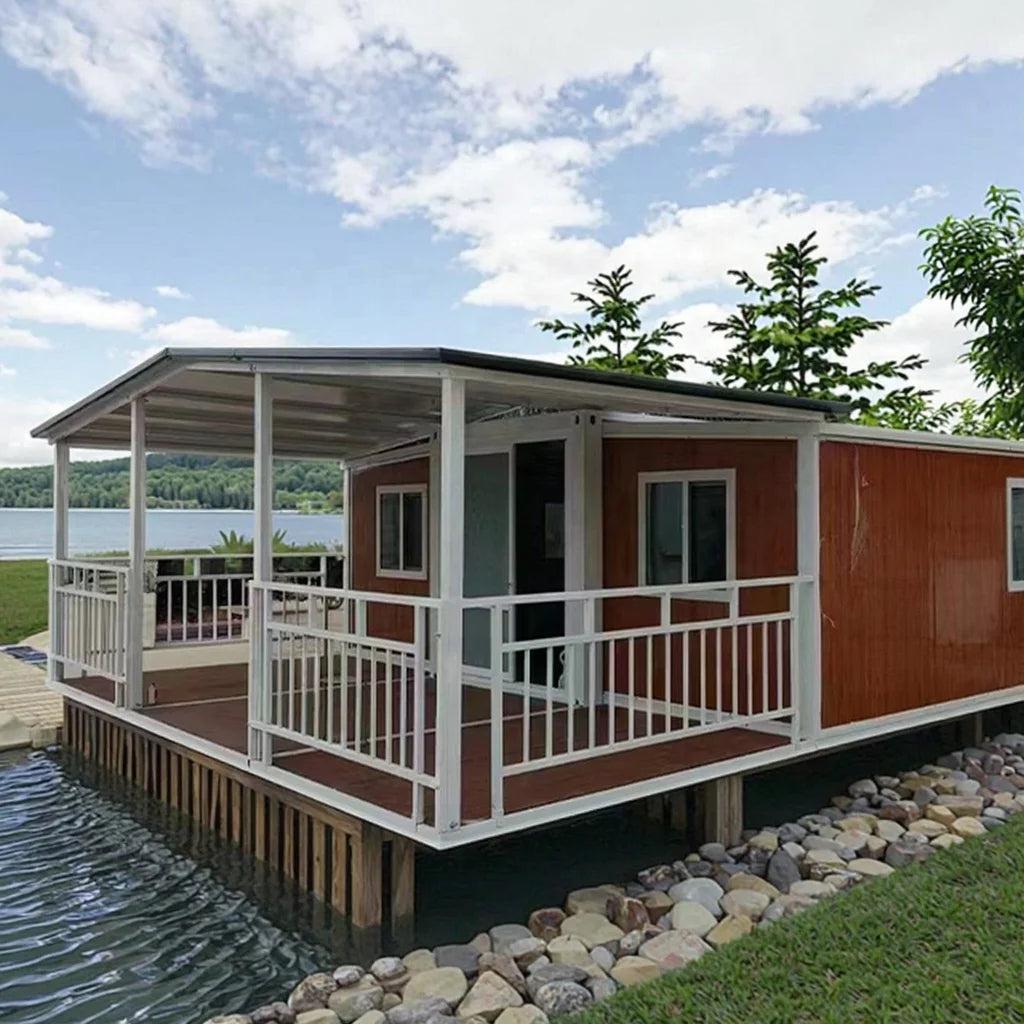

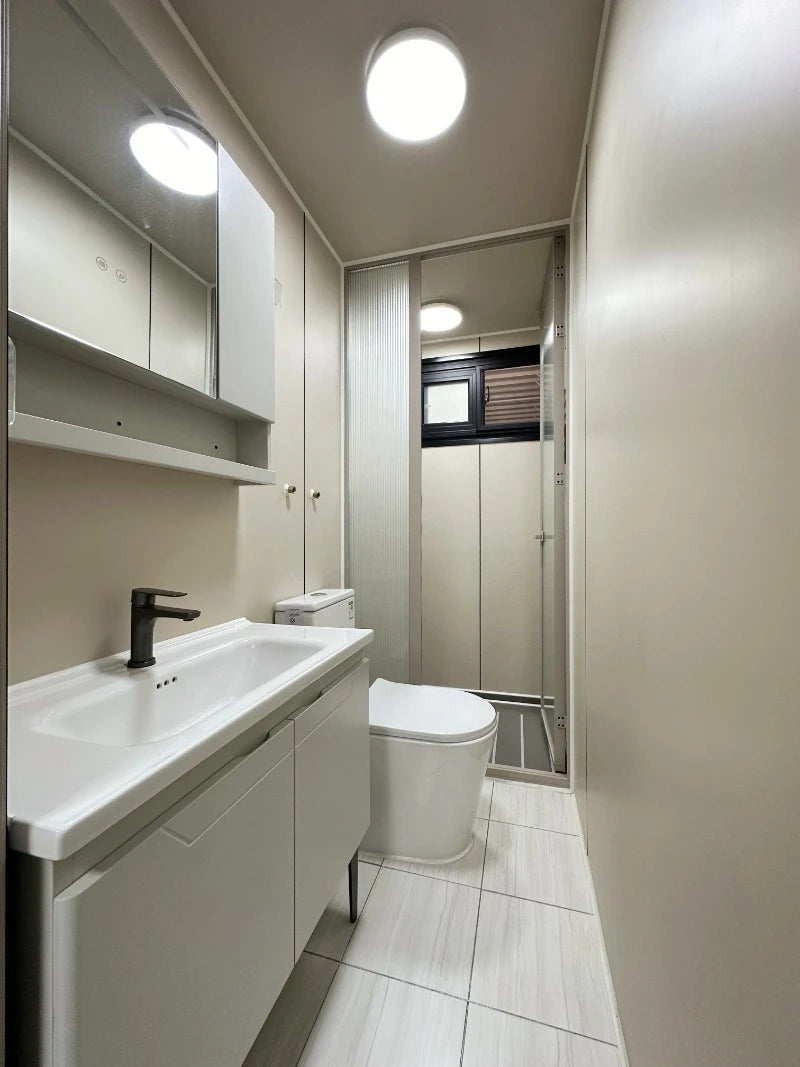

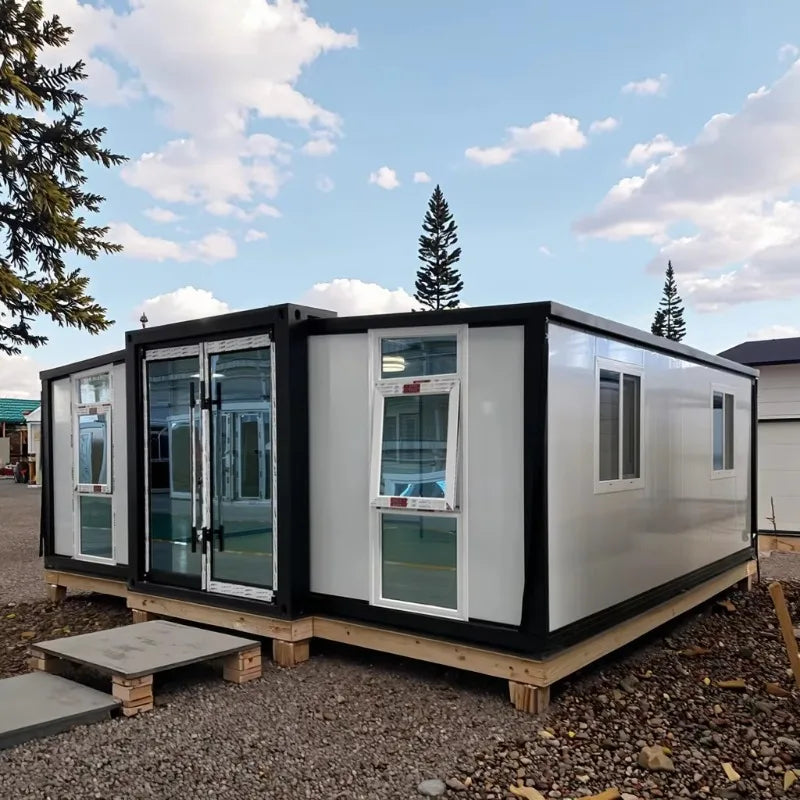

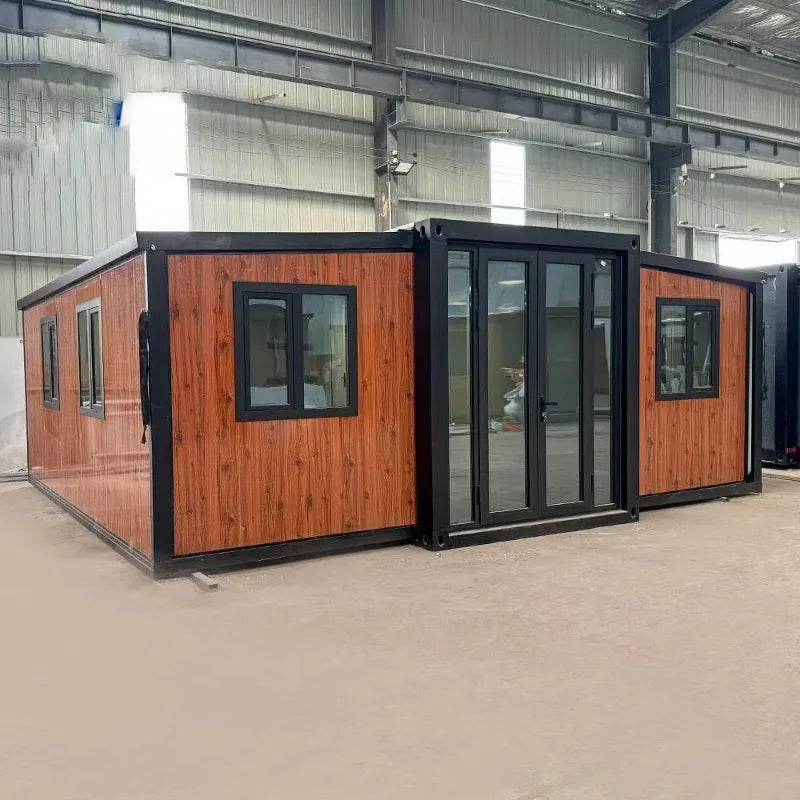

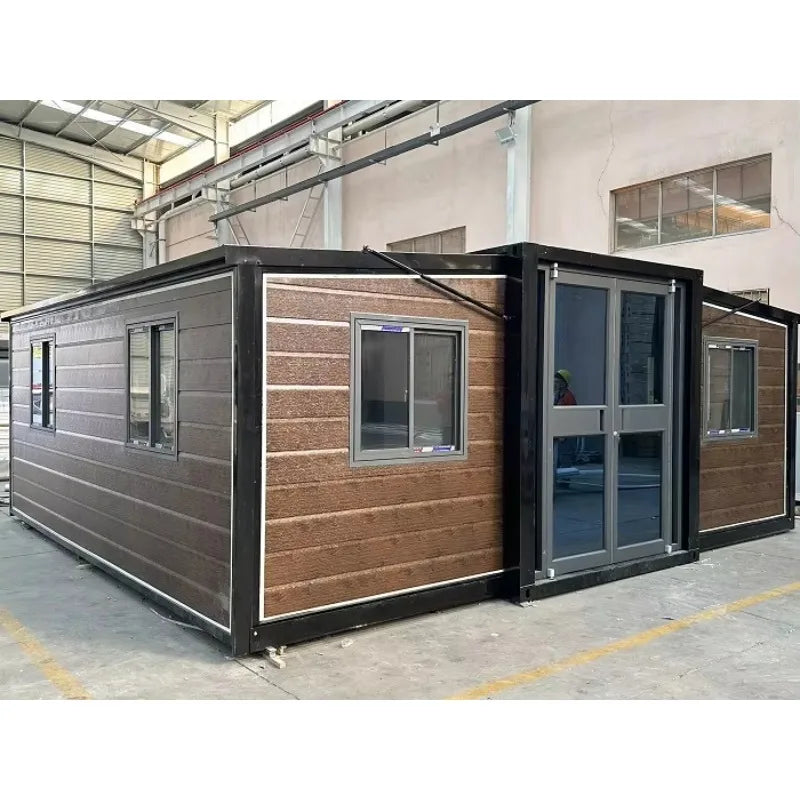

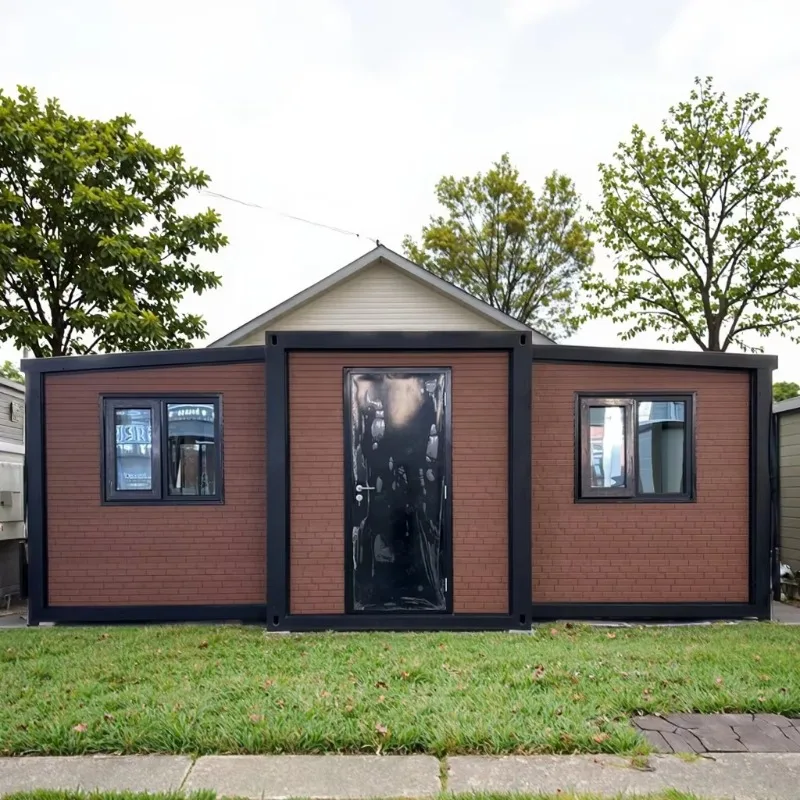

Container House Image 1 Container House Image 2 Container House Image 3 Container House Image 4 Container House Image 5
Specification of 20ft expandable folding house
Expanded size
L5900*W6300*H2480mm
layout
One room
internal dimensions
L5640*W6140*H2240mm
Number of occupants
2 to 4 persons
Folded dimensions
L5900*W2200*H2480mm
Power consumption
12KW
Footprint
37m2
total net weight
3.7 tons
framework structure
Serial number
Name
Content
Specifications
1
Main frame (full galvanized national standard)
Top side beams
80*100*2.5mm galvanized square tubes
2
Top beam
Bent parts galvanized 2.5 mm
3
top transverse secondary beams
30*50*1.7mm galvanized square tube
4
Bottom side beams
80*100*2.5mm galvanized square tubes
5
Bottom end beams
Galvanized bending parts 2.5 mm thick
6
bottom longitudinal secondary beams
40*80*1.7mm galvanized square tube
7
bottom transverse secondary beams
40*80*1.7mm galvanized square tube
8
6mm galvanized hanging hole
Galvanized hanging hole L210*W150*H160mm
9
steel columns
Galvanized bending parts 2.5 mm thick
10
Side frames (fully galvanized GB)
Top frame
40*80*1.7mm p-tube
11
40*80*1.7mm galvanized square tubes
12
Bottom frame
60*80*2.0mm galvanized square tubes
13
Folding hinge
130mm galvanized hinge
14
overall frame protection coating
Sprayed with baked enamel
electrostatic spraying/straight white plastic powder baking process + anticorrosive coating
15
Box top
main exterior top plate
Type 950-50mm thick double-sided 0.3mm, EPS color steel composite board + corrugated veneer t0.45mm
16
main interior ceiling panels
Type 950 - 50mm thick double-sided 0.3mm, EPS color steel composite panel
17
External top plates of both sides
Type 950-65mm thick double-sided 0.3mm, EPS color steel composite board + corrugated veneer t0.45mm
18
panels for walls
side walls, front and rear walls
Type 950-65mm thick double-sided 0.3mm, EPS color steel composite panel
19
interior partition wall panels
Type 950 - 50mm thick double-sided 0.3mm, EPS color steel composite panel
20
Ground
The main frame
Bamboo plywood 18mm thick
21
Both flanks
Bamboo plywood 18mm thick
22
Windows and doors
Aluminum alloy double glass sliding window
920*920mm*4 pieces
23
Steel fire door (brand)
840*2035mm*1 piece
24
electrical systems
circuit systems
Voltage 220V,50HZ
25
Lighting
300*300 flat panel light, large ceiling light
26
Socket
Standard with international three-hole, five-hole socket (can be configured according to customer requirements socket standard)
27
Light switches
Double open, single key switch (switch standard can be configured according to customer requirements)
28
Wiring
Incoming wires 6², air conditioning outlets 4², general outlets 2.5², lighting 1.5². (Standard national standard wires, customized
circuits to meet certification requirements according to country)
29
Accessories
Containing top corner, skirting, corner wrapping, waterproof tape, sling, structural adhesive (Baiyun), glue gun, etc., the
Remarks
The price quoted does not include taxes and shipping, including packaging and containerization fees
number of containers loaded
one 40HQ shipping container can hold 2 pieces
